Export from PVFARM

1. Dive into a project

2. Select objects you want to be exported

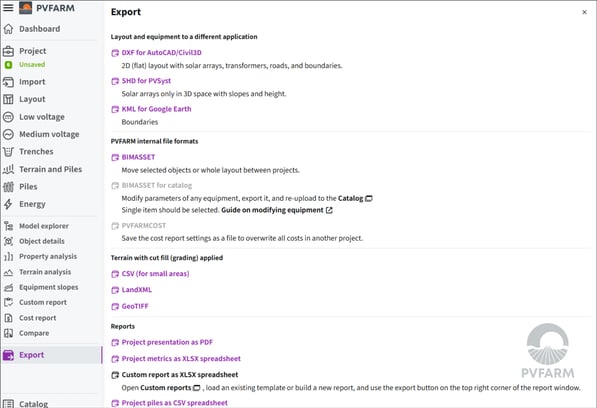

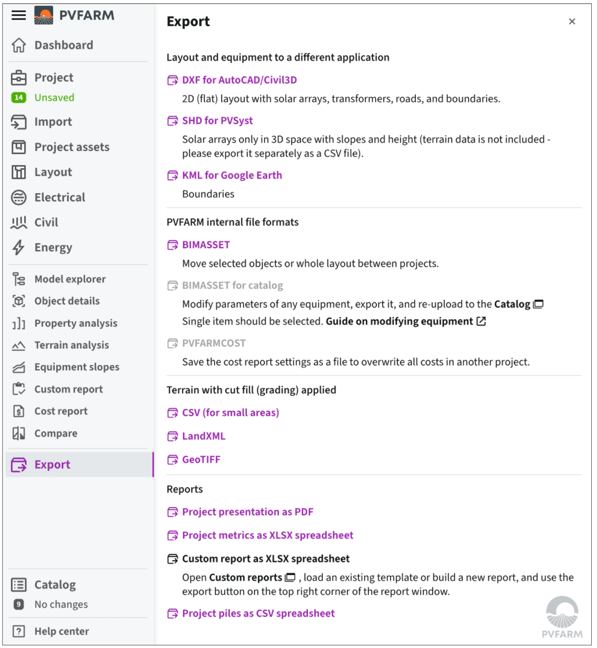

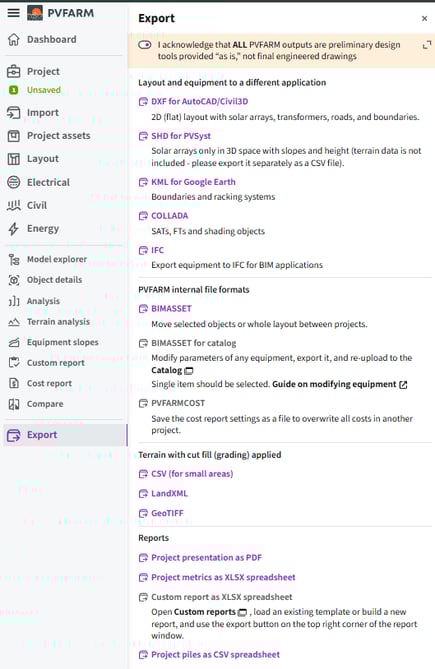

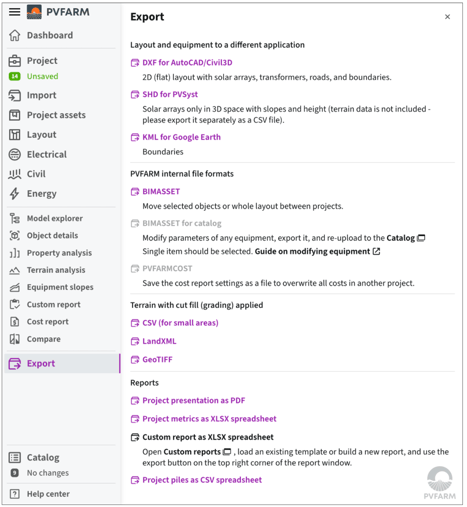

3. Navigation menu -> Export



   Layout and equipment to a different application

   DXF

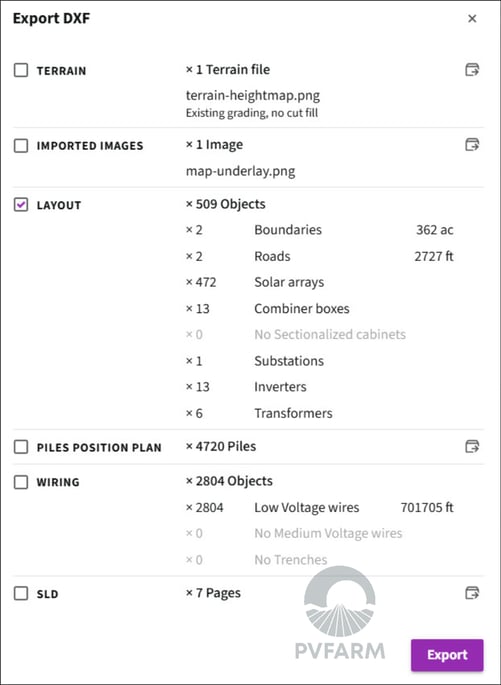

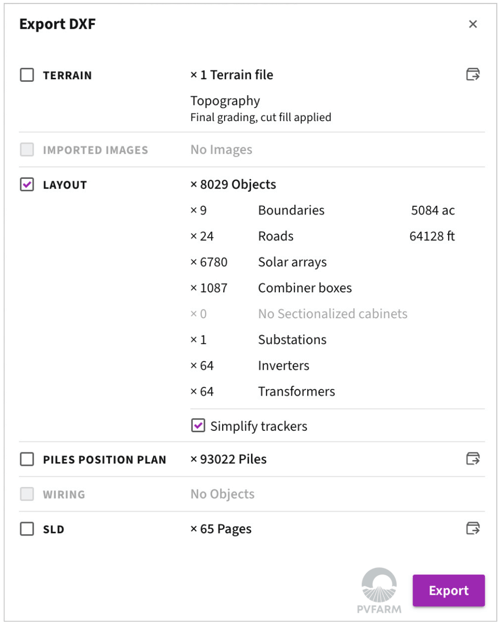

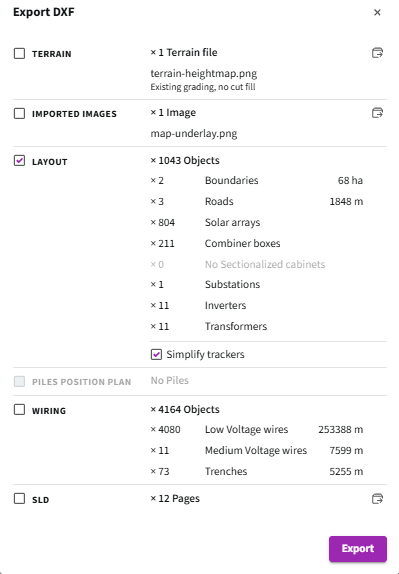

   • export your PVFARM layout (equipment, roads, and boundaries) to AutoCAD/Civil3D (Options shown below)




   • • export LV, MV wiring, and trenches

     • export terrain as 3D faces




     SHD for PVSyst

     • export your PVFARM layout (trackers and fixed tilt) to PVSyst
       Please dive into the article Export from PVFARM to PVSyst for details.




     KML for Google Earth

     • Boundaries and racking systems



     COLLADA

     • SATs, FTs and shading objects

                         IFC (Industry Foundation Classes)

                          - Export equipment to IFC for BIM applications

         PVFARM internal file formats

                           BIMASSET

• • • it is an internal file format for the PVFARM

    • use it to save a layout and import it to a new project




    PVFARMCOST

    • export your customized rates for future use across other projects

    • import the COSTMODEL file back into another project when needed

                       PVFARMCOST BIMASSET for Catalogue

         TERRAIN WITH CUT FILL (GRADING)

                       CSV, LandXML and GeoTIFF

• • • file formats for terrains

    • Select a boundary in your scene and make sure "Export Only Selected" is checked to export a surface by boundary.

    • CSV is used for exporting small areas of surface data

           REPORTS

                          PDF

• • • export main metrics of your PVFARM layout




    CSV/Excel

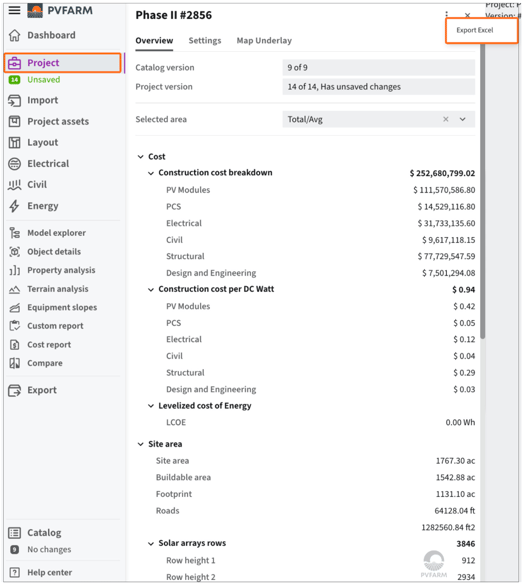

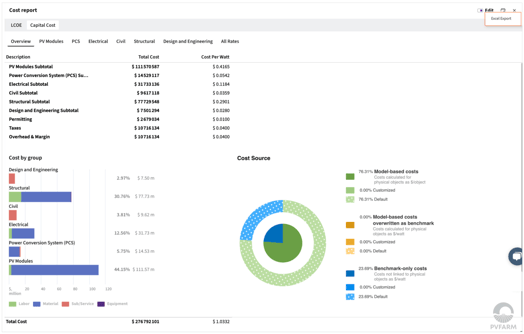

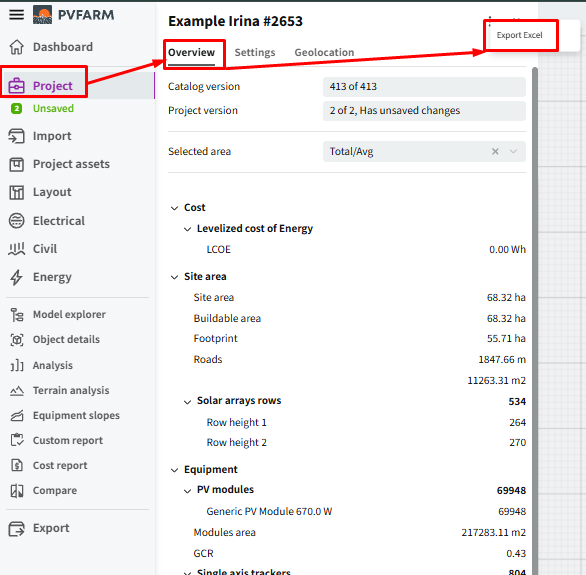

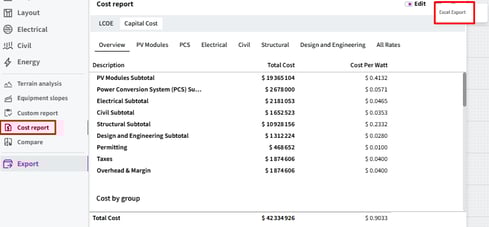

    • available for custom and cost reports, project metrics
      ​
